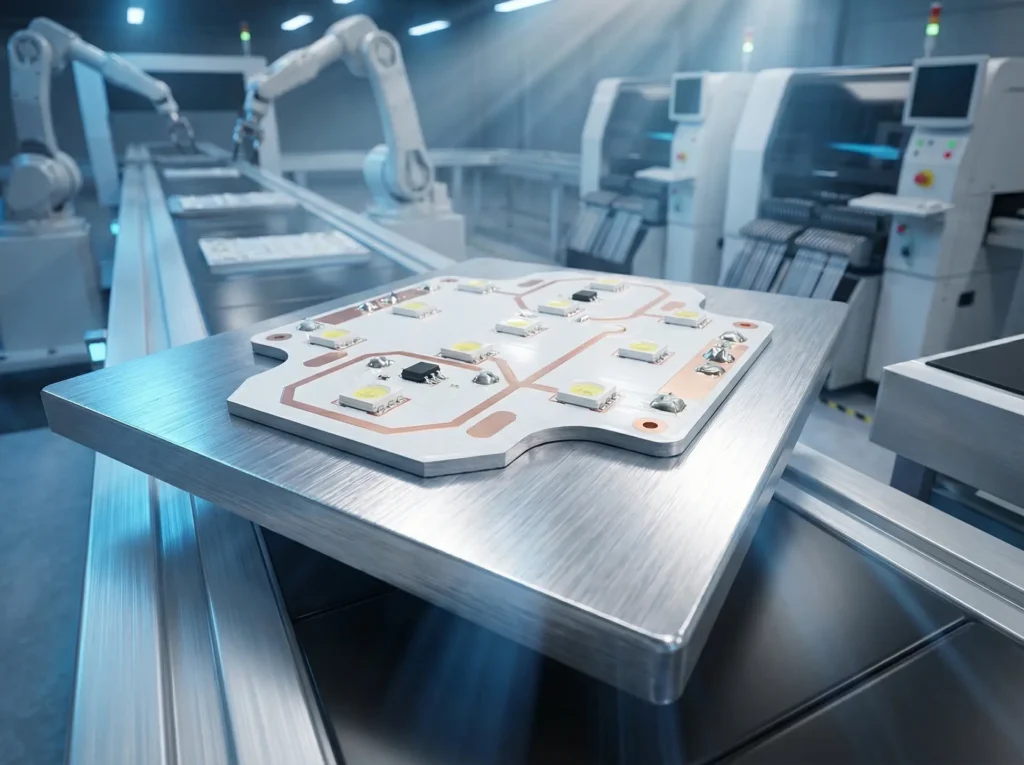

The single-side aluminum PCB consists of three functional layers: the copper circuit layer (1-10oz), the dielectric insulation layer (75-200μm), and the aluminum base (0.5-3.2mm). The dielectric layer is the critical performance element—it must simultaneously provide electrical isolation (breakdown voltage >3kV) and thermal conduction. Standard dielectric at 1.0 W/m·K uses epoxy filled with aluminum oxide particles, suitable for general LED lighting where junction temperatures are not extreme. Mid-range dielectrics at 2.0-3.0 W/m·K incorporate higher thermal filler loading for power LED modules and motor driver applications. For high-power density designs, we offer ceramic-particle-filled dielectrics reaching 10.0 W/m·K with thin dielectric layers (75μm) that achieve thermal resistance below 0.5°C/W per square inch. Aluminum alloy selection affects both thermal and mechanical performance: 1060 aluminum (thermal conductivity 200 W/m·K) is most common; 5052 provides better mechanical strength for vibration environments; 6061 offers superior machinability for complex routing profiles.

Aluminum PCB fabrication shares the imaging and etching steps with standard rigid PCB processing but diverges at routing and scoring. CNC routing of aluminum substrates requires carbide tooling with specific feed rates and spindle speeds to prevent burr formation on the aluminum edge. V-scoring depth must be carefully controlled—too shallow and panels will not separate cleanly; too deep and the board flexes during assembly, cracking solder joints. We score to a remaining web thickness of 0.3-0.5mm depending on board size and aluminum thickness. Solder mask application on aluminum PCBs must account for the CTE difference between the aluminum base (23 ppm/°C) and the solder mask film (50-60 ppm/°C), which can cause mask cracking under thermal cycling. We specify flexible solder mask formulations with elongation >30% for aluminum substrates. Surface finish options include HASL, lead-free HASL, ENIG, and OSP, applied using the same processes as rigid FR-4 boards.

LED lighting dominates the aluminum PCB market, consuming an estimated 70% of global IMS board production. High-bay industrial lighting, street lighting modules, and automotive headlamp LED arrays all rely on aluminum PCBs to maintain LED junction temperatures below manufacturer-specified maximums—typically 80-120°C depending on the LED package. A well-designed aluminum PCB reduces LED junction temperature by 20-40°C compared to an FR-4 board of identical layout, directly extending LED lifetime from the rated L70 specification. Beyond lighting, single-side aluminum PCBs serve power semiconductor mounting—MOSFET gate drivers, voltage regulator modules (VRMs), and solid-state relay packages. Automotive DC-DC converters and electric vehicle auxiliary power supplies use aluminum PCBs where power density exceeds 5W/cm² and board-level thermal management is essential.

Aluminum PCB quality verification extends beyond standard electrical testing to include thermal performance validation. We measure dielectric thermal conductivity on production lot samples using the laser flash method per ASTM E1461, with results reported on the material certificate. Breakdown voltage is tested per IPC-TM-650 2.5.7 at a minimum of 3kV AC for 60 seconds. Peel strength between the copper circuit layer and the dielectric exceeds 1.0 N/mm per IPC-TM-650 2.4.8. Thermal cycling reliability is validated per IPC-TM-650 2.6.7.2 from -40°C to +150°C for 500 cycles, with visual inspection for delamination, cracking, or measling. Board flatness is critical for aluminum PCBs that mount directly to heatsinks—we hold bow and twist to ≤0.5% per IPC-A-600. All aluminum PCBs carry UL recognition for the insulation system and compliance with RoHS requirements.
